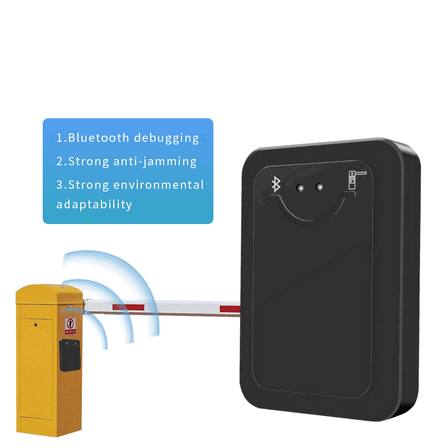

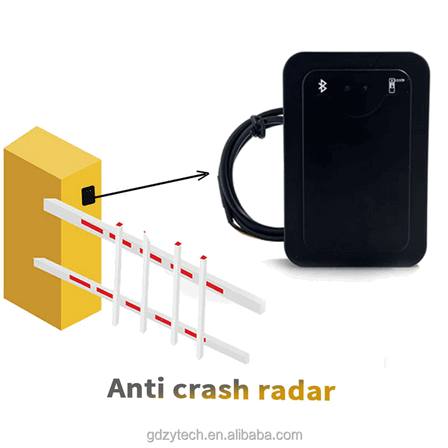

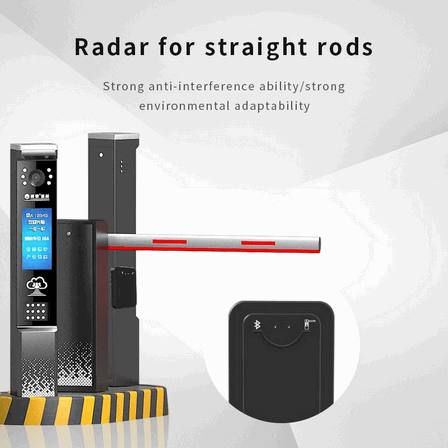

The wireless Bluetooth radar detector offers an unparalleled mix of high-performance sensing and simplified installation. By using a wireless signal protocol for sensor communication, this unit eliminates the need for long wire runs between the radar and the barrier controller, greatly reducing the potential for interference and downtime. The radar is optimized for straight-bar boom barriers, offering an adjustable sensing zone that covers the entire path of the gate arm. With its high-sensitivity tuning, it quickly distinguishes between vehicles and environmental movement, ensuring the gate closes only when safe. Designed for high-volume parking environments, this unit is a robust choice for property managers who want to modernize their facility security without costly infrastructure changes.

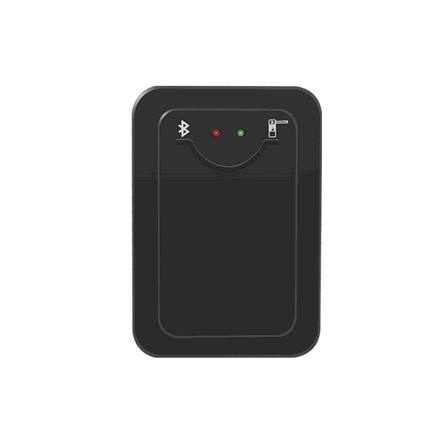

Wireless Bluetooth Radar Detector for Anti-Smash Straight Bar Boom Barrier Gates — radar sensor for barriers by Baroxon® for barrier safety.
Wireless Bluetooth Radar Detector for Anti-Smash Straight Bar Boom Barrier Gates is a radar sensor for barriers manufactured by Baroxon® in its own factory and aimed at barrier safety and vehicle detection. It is the right choice when the project needs to prevent the barrier from closing on a vehicle or a pedestrian. In standard configuration it offers Protection rating IP66 / IP67 for outdoor use; Power supply 12–24 V DC. Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.

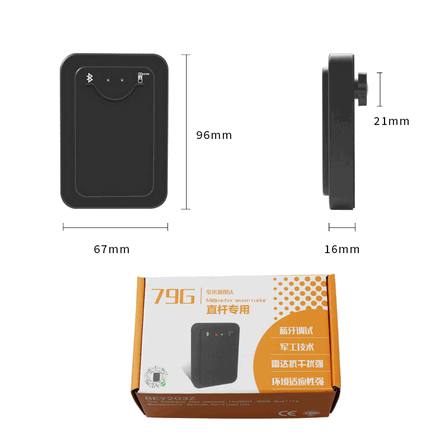

The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Detection range | 0.5–9 m, adjustable |
|---|---|
| Detection angle | Adjustable horizontally and vertically |
| Technology | Doppler microwave radar |
| Protection rating | IP66 / IP67 for outdoor use |
| Power supply | 12–24 V DC |
| Operating temperature | −30 °C to +70 °C |
Test conditions: Radar sensor mounted on a post at 1.2 m, 3.5 m lane, detection of light vehicles and moving pedestrians at different speeds, outdoor test between −5 °C and 40 °C with light rain.
Measured values: Stable detection range of 7 m for a light vehicle and 2.5 m for a pedestrian; response time 35 ms; no false detections across 500 consecutive passages; consumption 1.8 W.
Benchmark: Mid-range radar sensors on the market detect at 4–6 m with response times of 60–120 ms. The tested model extends the range to 7 m and responds 42–70% faster than that reference.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Detection range | 0.5–9 m, adjustable | 4–6 m |
| Detection angle | Adjustable horizontally and vertically | Market average |
| Technology | Doppler microwave radar | Market average |
| Protection rating | IP66 / IP67 for outdoor use | IP44–IP54 |
| Power supply | 12–24 V DC | AC 230 V without backup |
| Operating temperature | −30 °C to +70 °C | −20 °C to +55 °C |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.
It detects vehicles or people in the barrier zone to prevent closing on the vehicle and improve safety.
Yes. Outdoor models have IP66/IP67 protection and adjustable sensitivity.
It can replace it where the pavement cannot be cut; in some projects both are combined.
On a post or wall, aimed at the detection zone, with distance and angle configuration.
