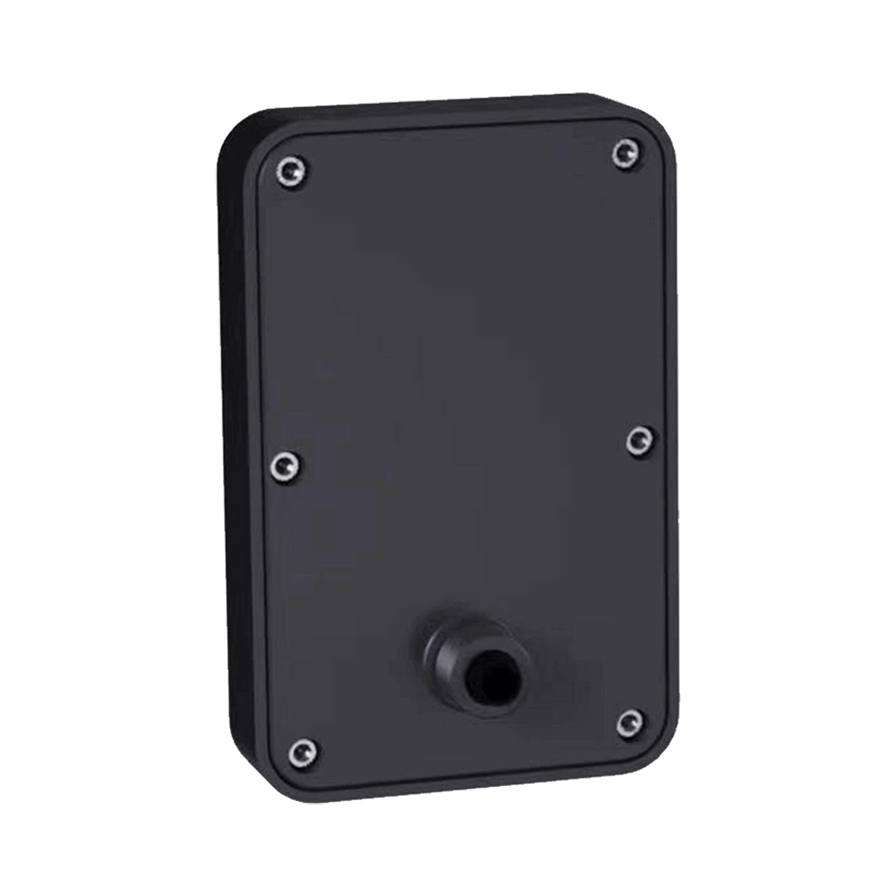

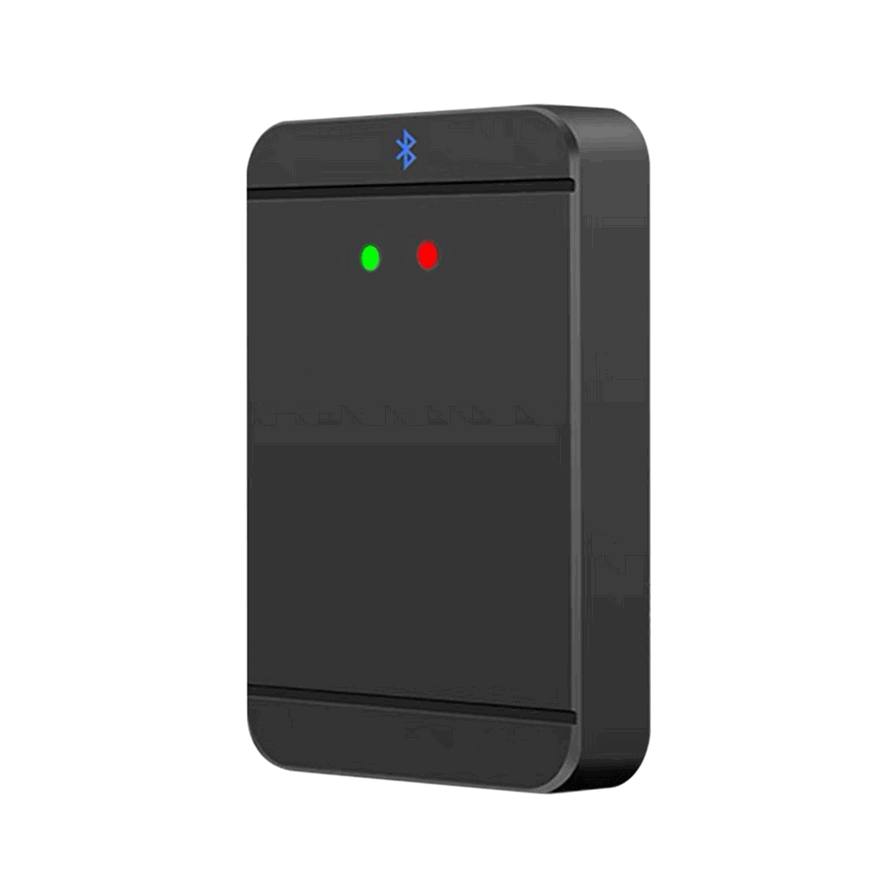

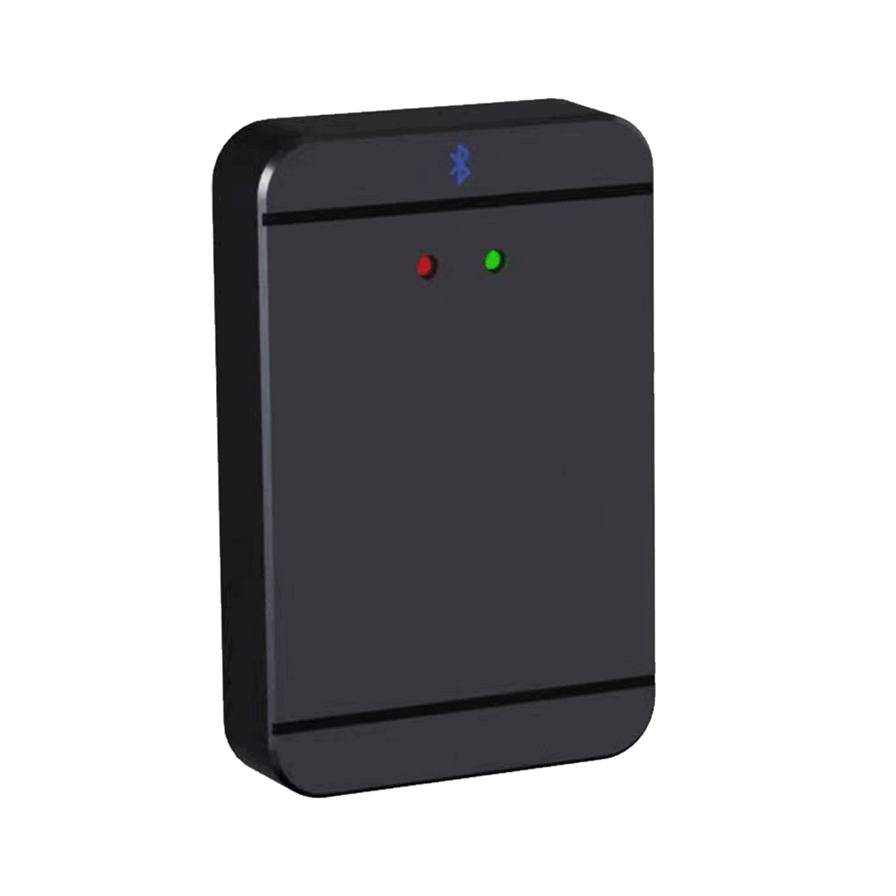

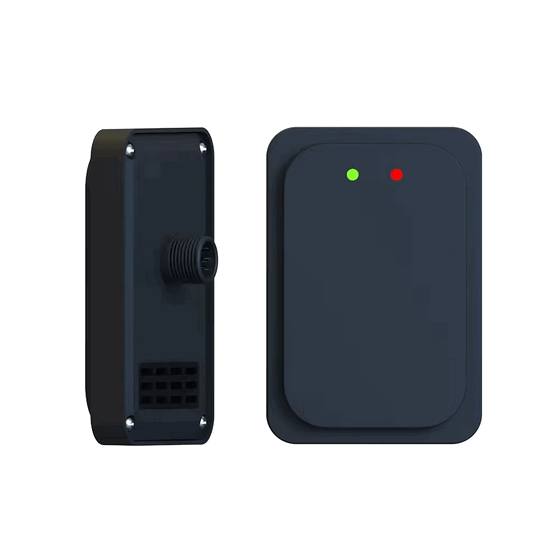

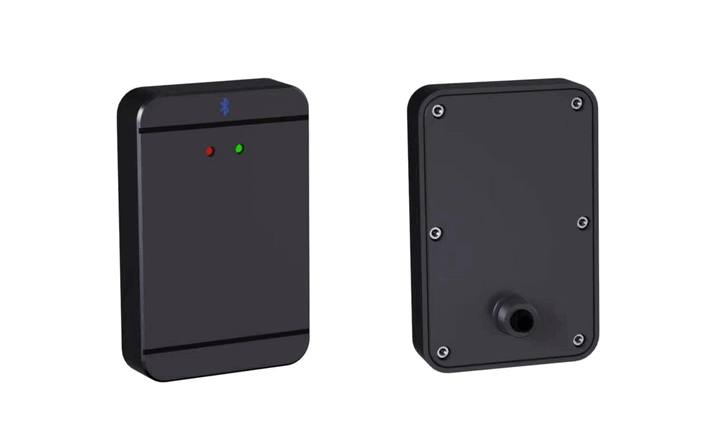

The App-controlled 79GHz radar loop detector is a flagship innovation in modern access control. By replacing invasive inductive loops, this radar sensor provides a completely non-intrusive solution for vehicle detection at boom barriers. The dedicated mobile application offers a granular level of control, allowing facility managers to map out detection zones, set hold-time durations, and adjust sensitivity based on current traffic patterns. Its ultra-high frequency radar provides pinpoint accuracy in detecting all vehicle types, including those with minimal metallic content. This system is designed for high-traffic corporate and public parking facilities that require rapid deployment and high uptime. The radar's advanced logic ensures that barrier gates remain open until a vehicle has fully cleared the safety perimeter.
App-Controlled 79GHz Radar Loop Detector for Smart Parking Boom Barrier Systems — radar sensor for barriers by Baroxon® for barrier safety.
App-Controlled 79GHz Radar Loop Detector for Smart Parking Boom Barrier Systems is a radar sensor for barriers manufactured by Baroxon® in its own factory and aimed at barrier safety and vehicle detection. It is the right choice when the project needs to prevent the barrier from closing on a vehicle or a pedestrian. In standard configuration it offers Protection rating IP66 / IP67 for outdoor use; Power supply 12–24 V DC. Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.
The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Detection range | 0.5–9 m, adjustable |
|---|---|
| Detection angle | Adjustable horizontally and vertically |
| Technology | Doppler microwave radar |
| Protection rating | IP66 / IP67 for outdoor use |
| Power supply | 12–24 V DC |
| Operating temperature | −30 °C to +70 °C |
Test conditions: Radar sensor mounted on a post at 1.2 m, 3.5 m lane, detection of light vehicles and moving pedestrians at different speeds, outdoor test between −5 °C and 40 °C with light rain.
Measured values: Stable detection range of 7 m for a light vehicle and 2.5 m for a pedestrian; response time 35 ms; no false detections across 500 consecutive passages; consumption 1.8 W.
Benchmark: Mid-range radar sensors on the market detect at 4–6 m with response times of 60–120 ms. The tested model extends the range to 7 m and responds 42–70% faster than that reference.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Detection range | 0.5–9 m, adjustable | 4–6 m |
| Detection angle | Adjustable horizontally and vertically | Market average |
| Technology | Doppler microwave radar | Market average |
| Protection rating | IP66 / IP67 for outdoor use | IP44–IP54 |
| Power supply | 12–24 V DC | AC 230 V without backup |
| Operating temperature | −30 °C to +70 °C | −20 °C to +55 °C |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.
It detects vehicles or people in the barrier zone to prevent closing on the vehicle and improve safety.
Yes. Outdoor models have IP66/IP67 protection and adjustable sensitivity.
It can replace it where the pavement cannot be cut; in some projects both are combined.
On a post or wall, aimed at the detection zone, with distance and angle configuration.
