This smart lot barrier gate is a highly adaptable entry management system that balances the efficiency of automated LPR recognition with the personalized service of booth attendant integration. The system allows for seamless, touchless transit for authorized vehicles while keeping the option for manual, attendant-verified entry, which is essential for high-security environments, gated communities, or commercial hubs with frequent visitor traffic. Built for high-cycle reliability and professional-grade security, the system provides real-time traffic data and an audit trail for all entries and exits. For facility managers, this gate serves as a versatile, high-availability security asset that scales with your site's operational needs and provides a superior, flexible entrance experience.

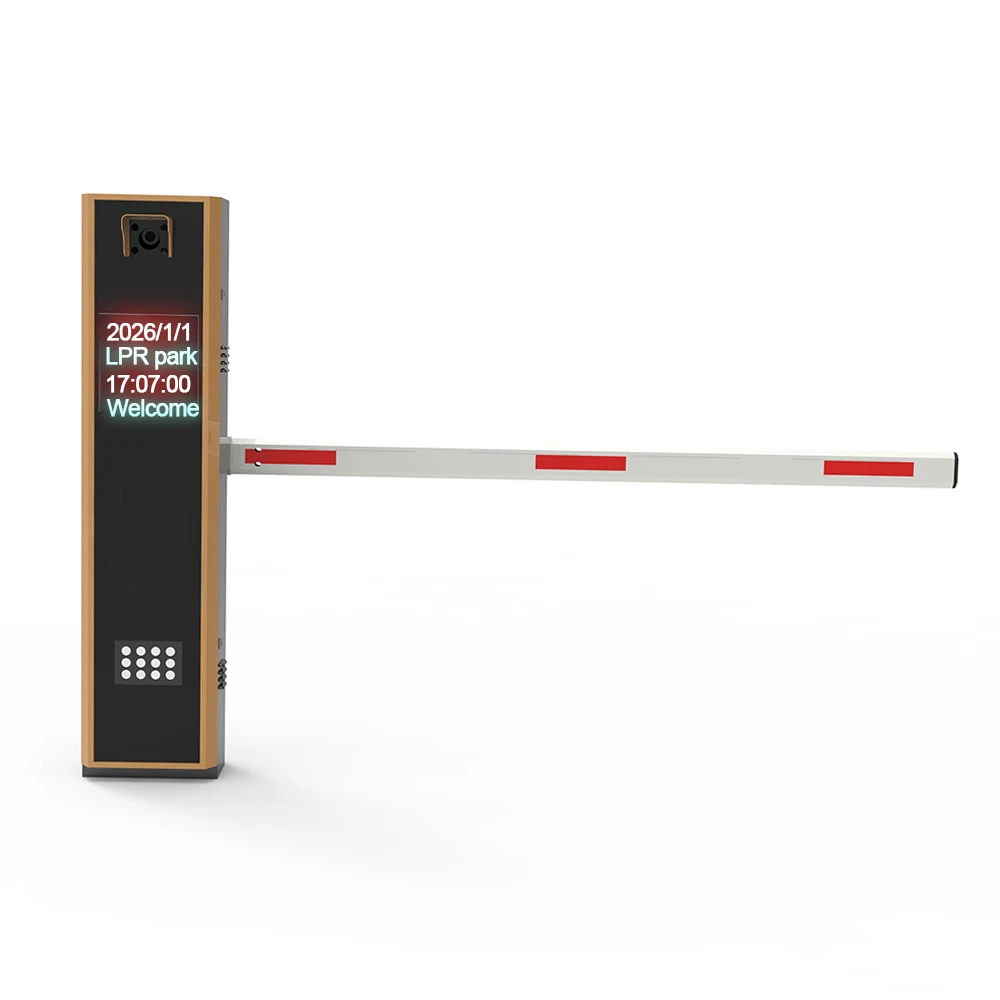

Smart Lot Barrier Gate with LPR Camera & Booth Attendant Integration — automatic boom barrier by Baroxon® for residential community entrances.
Smart Lot Barrier Gate with LPR Camera & Booth Attendant Integration is a automatic boom barrier manufactured by Baroxon® in its own factory and aimed at residential community entrances, office car parks and industrial sites. It is the right choice when the project needs to control vehicle entry without a booth operator and without stopping traffic. In standard configuration it offers Boom arm length 3–6 m (up to 8 m on request); Open/close time 0.9–6 s depending on model; Protection rating IP54 (indoor) / IP65 (outdoor). Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.
The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Boom arm length | 3–6 m (up to 8 m on request) |
|---|---|
| Open/close time | 0.9–6 s depending on model |
| Motor | 24 V DC brushless |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery |
| Protection rating | IP54 (indoor) / IP65 (outdoor) |
| MCBF | ≥ 5,000,000 cycles |
Test conditions: Straight 6 m boom barrier, 24 V DC brushless motor, 230 V ±5% supply, ambient temperature 25 °C, 60% relative humidity, continuous run of 1,000 cycles with a 3 s pause between each.
Measured values: Opening time 1.8 s and closing time 2.1 s; final-position repeatability ±1°; MCBF of 5,000,000 cycles; standby consumption 3.5 W; sound level 58 dB(A) measured at 1 m.
Benchmark: Comparable 6 m barriers on the European market typically open in 4.0–6.0 s, with an MCBF of 1,000,000–2,000,000 cycles and standby consumption of 8–12 W. The tested model cuts opening time by 55–70% and extends service life 2.5× versus that average.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Boom arm length | 3–6 m (up to 8 m on request) | 4–6 m |
| Open/close time | 0.9–6 s depending on model | 4.0–6.0 s |
| Motor | 24 V DC brushless | Standard 24 V DC |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery | AC 230 V without backup |
| Protection rating | IP54 (indoor) / IP65 (outdoor) | IP44–IP54 |
| MCBF | ≥ 5,000,000 cycles | 1,000,000–2,000,000 cycles |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.

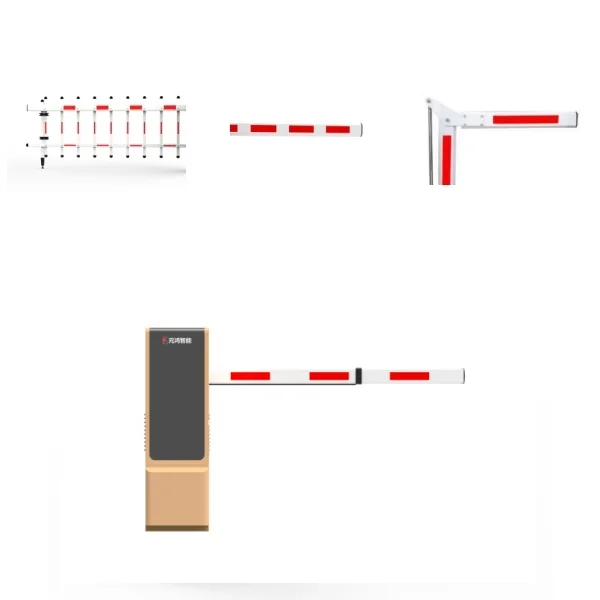

Arm length depends on lane width: 3 m for a single lane, 4-6 m for two lanes, and folding arms for low ceilings or ramps. Baroxon manufactures straight and folding arms up to 6-8 m on request.
For residential communities and normal car parks, 3-6 seconds is enough; for toll plazas and high-traffic sites we recommend 24 V DC brushless motors with 0.9-2 second opening.
AC 110 V or 220 V depending on the country; 24 V DC versions with backup battery are also available for power outages.
Yes. Baroxon barriers support plate recognition cameras, UHF RFID, cards, QR codes, push buttons and remote controls through relay or open protocol.
