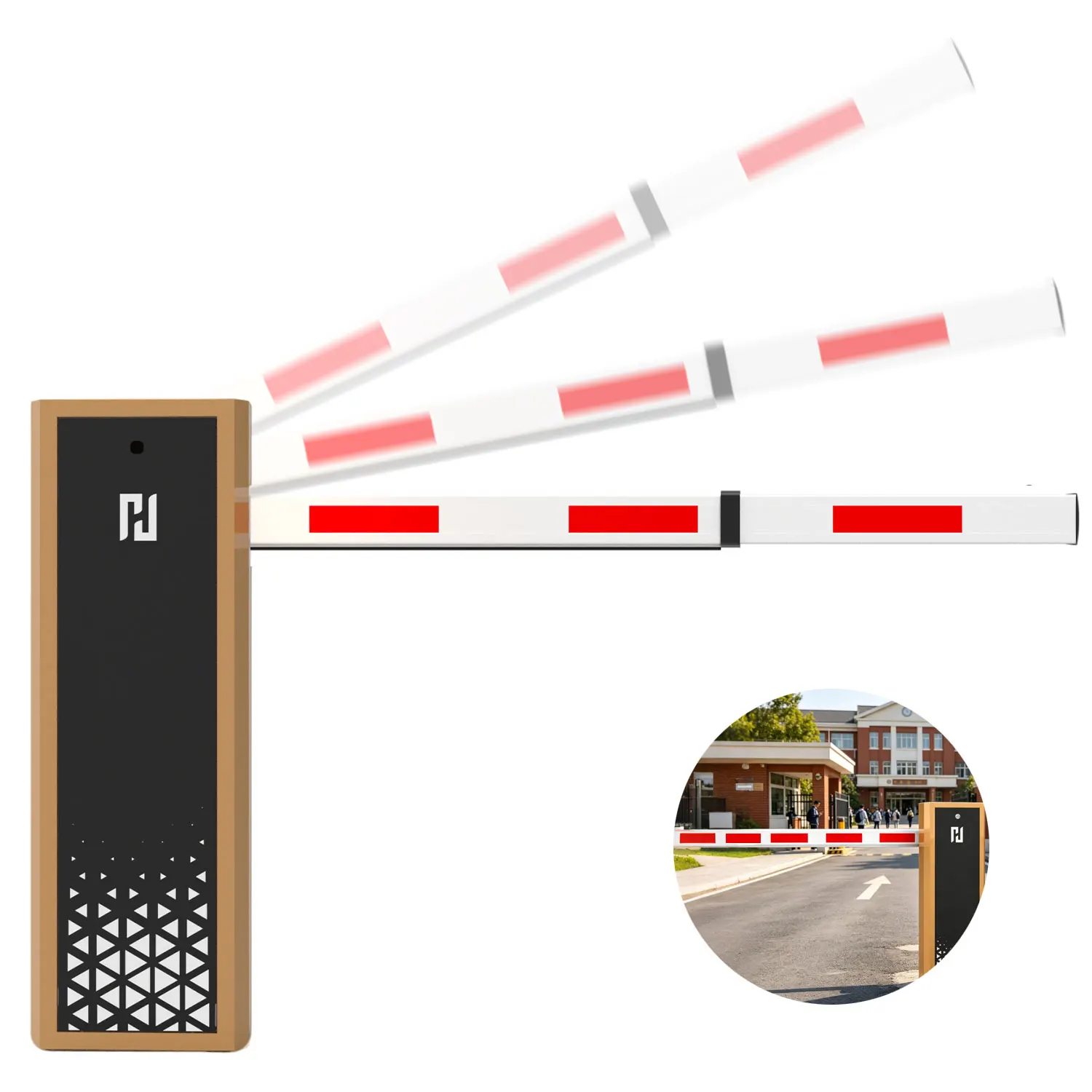

This outdoor intelligent weatherproof parking barrier is a high-performance entrance solution engineered for environments exposed to rain, snow, and extreme temperature fluctuations. Featuring a variable-speed motor drive, the system can be precisely adjusted to match the required traffic flow intensity of your specific entrance lane, ensuring rapid, safe, and efficient vehicle transit. The enclosure is constructed with advanced corrosion-resistant alloys, guaranteeing longevity and aesthetic appeal in outdoor settings. Designed for high-volume corporate or public parking facilities, this barrier system provides a highly reliable, low-maintenance entrance point that ensures consistent perimeter security, prevents traffic congestion, and operates flawlessly regardless of harsh environmental conditions.
Outdoor Intelligent Weatherproof Variable Speed Parking B… — automatic boom barrier by Baroxon® for residential community entrances.

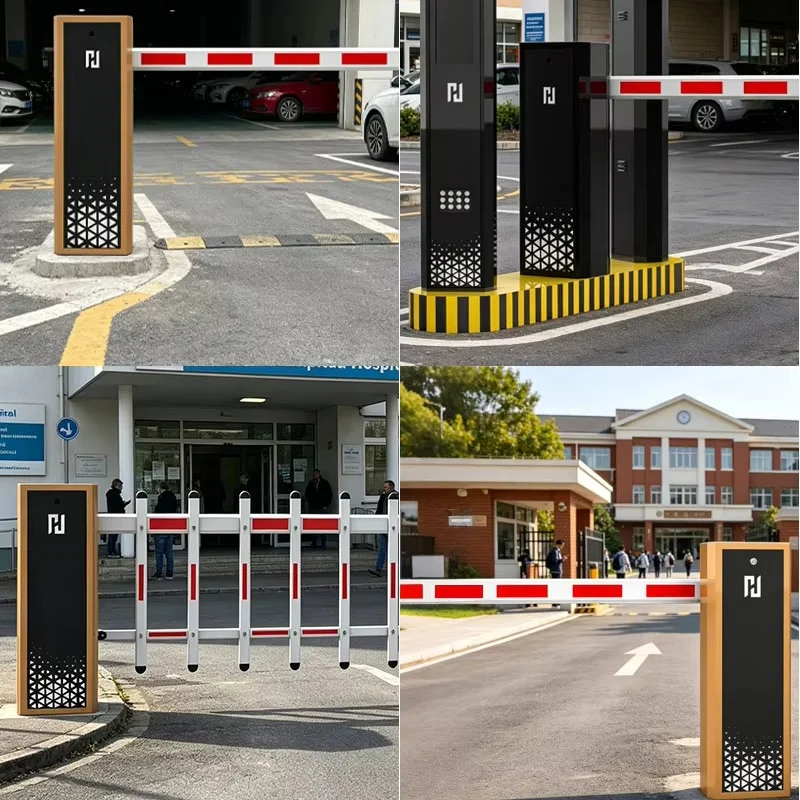

Outdoor Intelligent Weatherproof Variable Speed Parking Barrier for Busy Lanes is a automatic boom barrier manufactured by Baroxon® in its own factory and aimed at residential community entrances, office car parks and industrial sites. It is the right choice when the project needs to control vehicle entry without a booth operator and without stopping traffic. In standard configuration it offers Boom arm length 3–6 m (up to 8 m on request); Open/close time 0.9–6 s depending on model; Protection rating IP54 (indoor) / IP65 (outdoor). Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.
The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Boom arm length | 3–6 m (up to 8 m on request) |
|---|---|
| Open/close time | 0.9–6 s depending on model |
| Motor | 24 V DC brushless |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery |
| Protection rating | IP54 (indoor) / IP65 (outdoor) |
| MCBF | ≥ 5,000,000 cycles |
Test conditions: Straight 6 m boom barrier, 24 V DC brushless motor, 230 V ±5% supply, ambient temperature 25 °C, 60% relative humidity, continuous run of 1,000 cycles with a 3 s pause between each.
Measured values: Opening time 1.8 s and closing time 2.1 s; final-position repeatability ±1°; MCBF of 5,000,000 cycles; standby consumption 3.5 W; sound level 58 dB(A) measured at 1 m.
Benchmark: Comparable 6 m barriers on the European market typically open in 4.0–6.0 s, with an MCBF of 1,000,000–2,000,000 cycles and standby consumption of 8–12 W. The tested model cuts opening time by 55–70% and extends service life 2.5× versus that average.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Boom arm length | 3–6 m (up to 8 m on request) | 4–6 m |
| Open/close time | 0.9–6 s depending on model | 4.0–6.0 s |
| Motor | 24 V DC brushless | Standard 24 V DC |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery | AC 230 V without backup |
| Protection rating | IP54 (indoor) / IP65 (outdoor) | IP44–IP54 |
| MCBF | ≥ 5,000,000 cycles | 1,000,000–2,000,000 cycles |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.

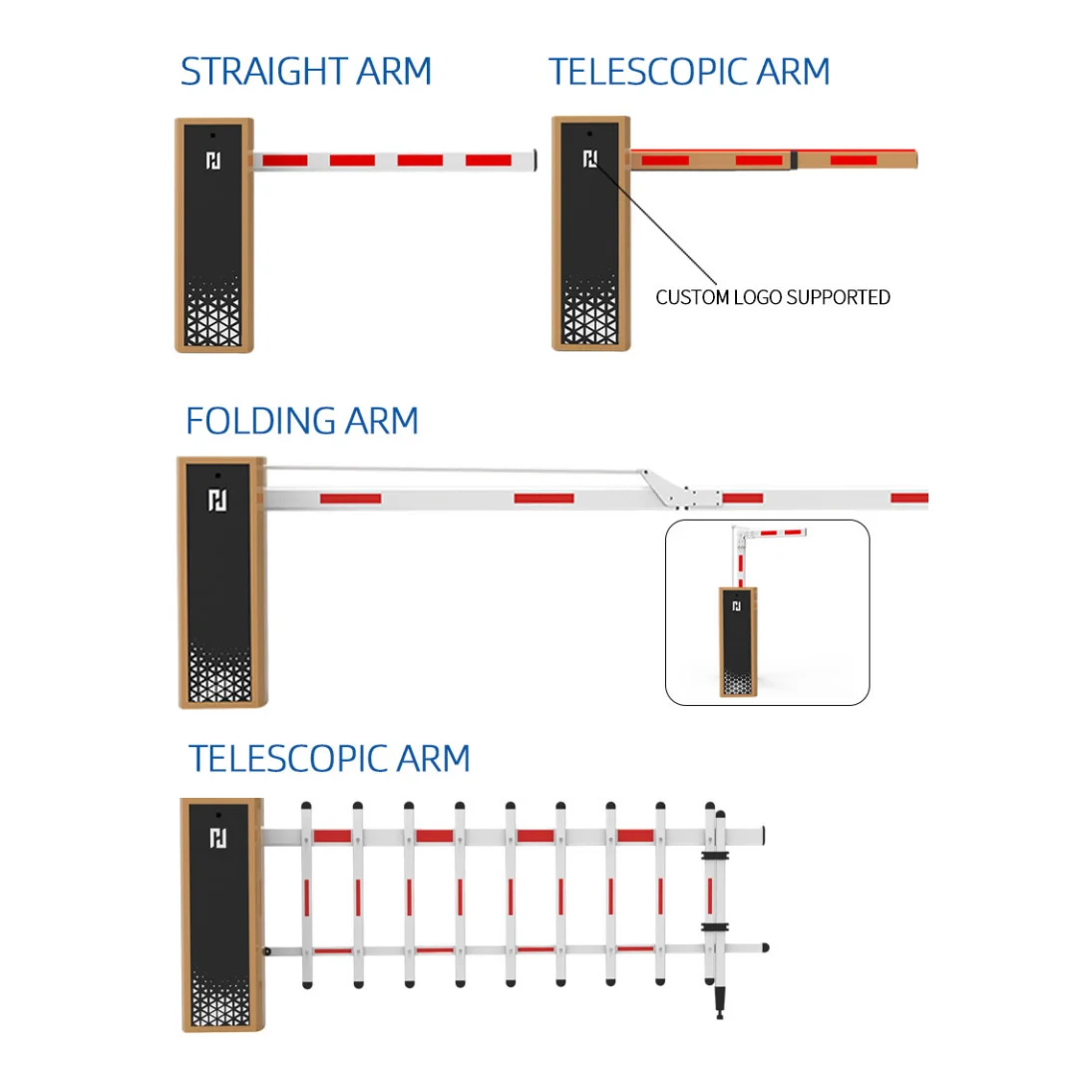

Arm length depends on lane width: 3 m for a single lane, 4-6 m for two lanes, and folding arms for low ceilings or ramps. Baroxon manufactures straight and folding arms up to 6-8 m on request.
For residential communities and normal car parks, 3-6 seconds is enough; for toll plazas and high-traffic sites we recommend 24 V DC brushless motors with 0.9-2 second opening.
AC 110 V or 220 V depending on the country; 24 V DC versions with backup battery are also available for power outages.
Yes. Baroxon barriers support plate recognition cameras, UHF RFID, cards, QR codes, push buttons and remote controls through relay or open protocol.
