This heavy-duty automatic parking barrier is powered by advanced brushless DC motor technology, setting a new standard for reliability and performance in high-volume traffic environments. By removing the friction and maintenance headaches associated with traditional brushed motors, this barrier ensures a whisper-quiet, consistent, and exceptionally fast entry experience, which is critical for peak-hour transit management. The housing is constructed from heavy-gauge steel, offering robust protection against environmental factors and physical wear. For facility managers in busy commercial sectors, this system represents a low-maintenance, high-efficiency asset that ensures uninterrupted perimeter security and seamless vehicle flow, ultimately maximizing the operational throughput and long-term reliability of your parking infrastructure.
Heavy-Duty Brushless Motor Automatic Parking Barrier for High-Volume Access — automatic boom barrier by Baroxon® for residential community entrances.

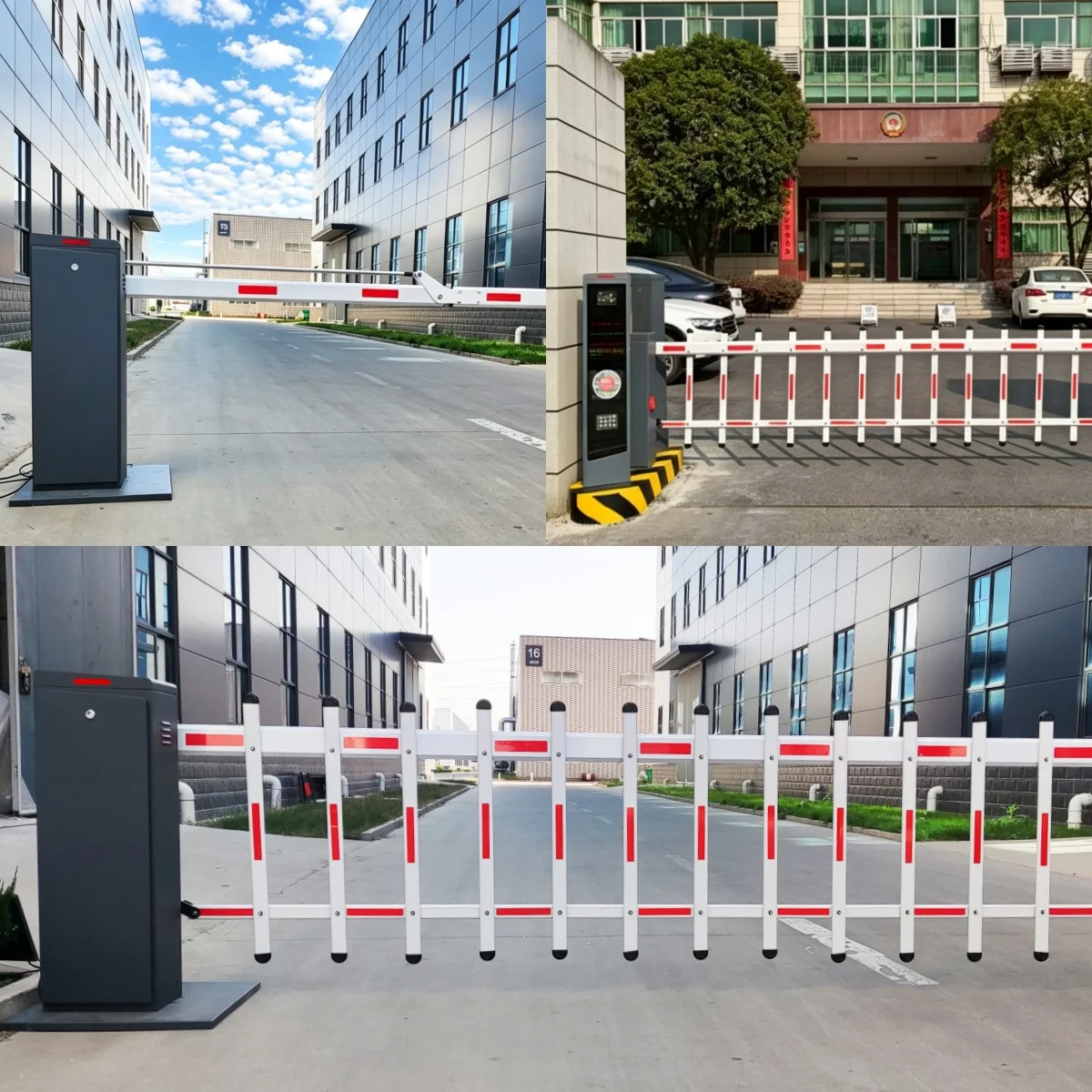

Heavy-Duty Brushless Motor Automatic Parking Barrier for High-Volume Access is a automatic boom barrier manufactured by Baroxon® in its own factory and aimed at residential community entrances, office car parks and industrial sites. It is the right choice when the project needs to control vehicle entry without a booth operator and without stopping traffic. In standard configuration it offers Boom arm length 3–6 m (up to 8 m on request); Open/close time 0.9–6 s depending on model; Protection rating IP54 (indoor) / IP65 (outdoor). Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.
The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Boom arm length | 3–6 m (up to 8 m on request) |
|---|---|
| Open/close time | 0.9–6 s depending on model |
| Motor | 24 V DC brushless |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery |
| Protection rating | IP54 (indoor) / IP65 (outdoor) |
| MCBF | ≥ 5,000,000 cycles |
Test conditions: Straight 6 m boom barrier, 24 V DC brushless motor, 230 V ±5% supply, ambient temperature 25 °C, 60% relative humidity, continuous run of 1,000 cycles with a 3 s pause between each.
Measured values: Opening time 1.8 s and closing time 2.1 s; final-position repeatability ±1°; MCBF of 5,000,000 cycles; standby consumption 3.5 W; sound level 58 dB(A) measured at 1 m.
Benchmark: Comparable 6 m barriers on the European market typically open in 4.0–6.0 s, with an MCBF of 1,000,000–2,000,000 cycles and standby consumption of 8–12 W. The tested model cuts opening time by 55–70% and extends service life 2.5× versus that average.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Boom arm length | 3–6 m (up to 8 m on request) | 4–6 m |
| Open/close time | 0.9–6 s depending on model | 4.0–6.0 s |
| Motor | 24 V DC brushless | Standard 24 V DC |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery | AC 230 V without backup |
| Protection rating | IP54 (indoor) / IP65 (outdoor) | IP44–IP54 |
| MCBF | ≥ 5,000,000 cycles | 1,000,000–2,000,000 cycles |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.

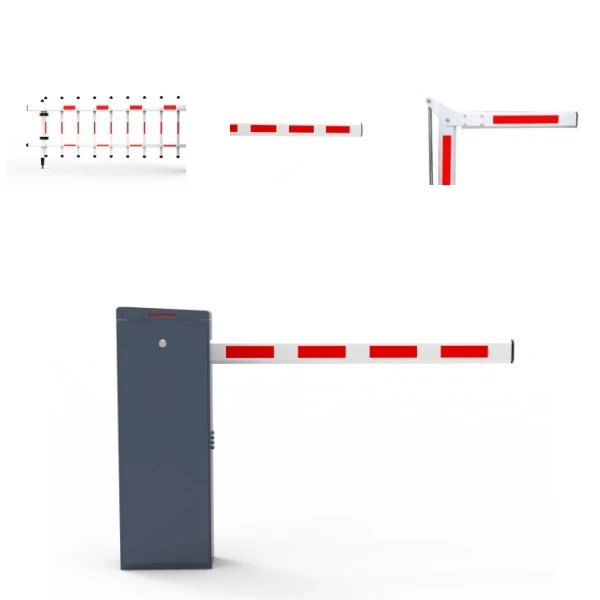

Arm length depends on lane width: 3 m for a single lane, 4-6 m for two lanes, and folding arms for low ceilings or ramps. Baroxon manufactures straight and folding arms up to 6-8 m on request.
For residential communities and normal car parks, 3-6 seconds is enough; for toll plazas and high-traffic sites we recommend 24 V DC brushless motors with 0.9-2 second opening.
AC 110 V or 220 V depending on the country; 24 V DC versions with backup battery are also available for power outages.
Yes. Baroxon barriers support plate recognition cameras, UHF RFID, cards, QR codes, push buttons and remote controls through relay or open protocol.
