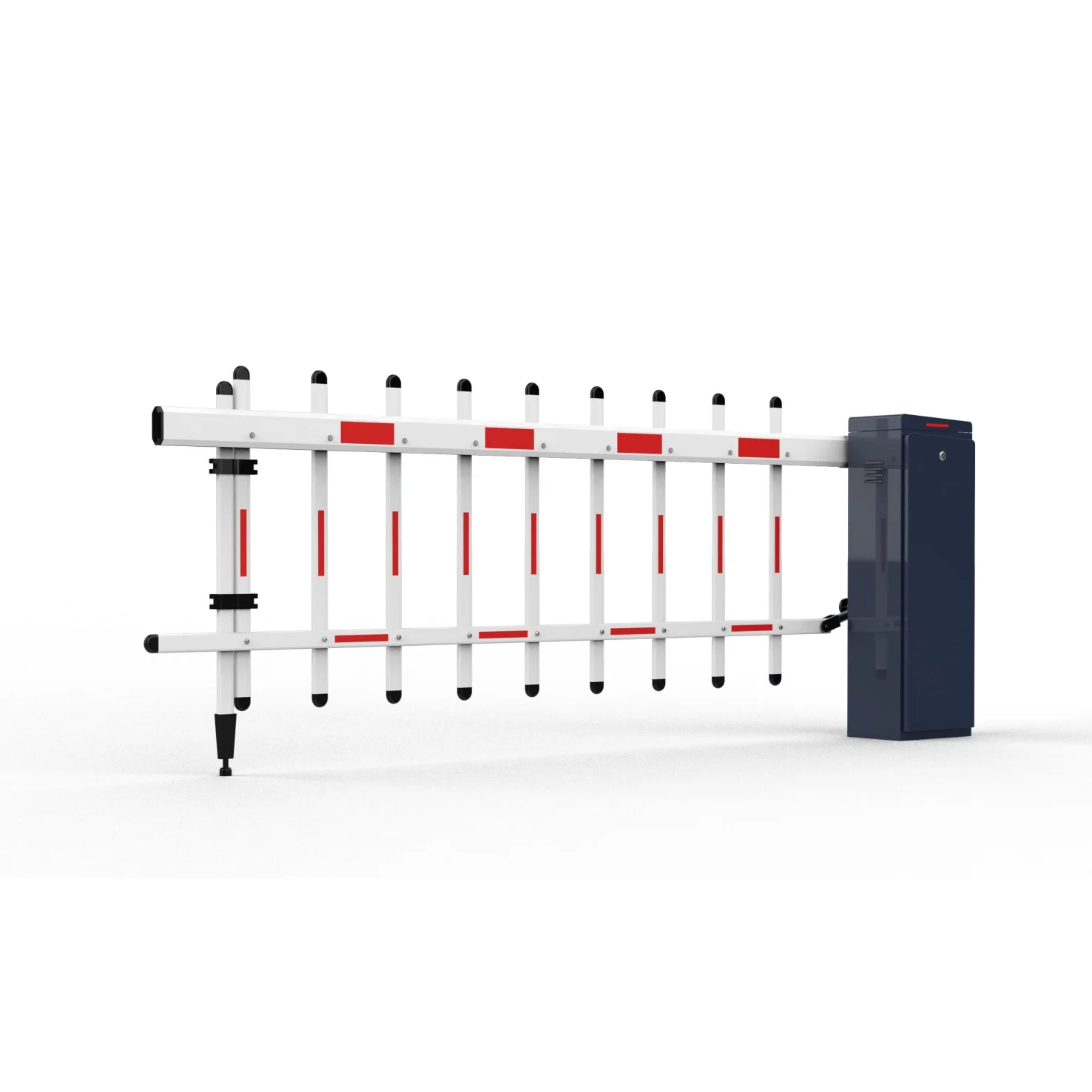

This high-quality automatic parking barrier arm is the cornerstone of effective perimeter security and vehicle access management for modern commercial facilities. Designed for absolute reliability, the gate features a reinforced internal drive unit and a high-strength arm, ensuring that it remains functional under the daily stress of thousands of vehicle cycles. The weather-treated exterior cabinet offers protection against the elements, making it an ideal choice for both indoor and outdoor applications. For property and facility managers, this barrier represents a high-availability infrastructure asset that guarantees orderly, secure vehicle ingress and egress, simplifies site traffic management, and upholds the professional standard of your facility’s perimeter.
High-Quality Automatic Parking Barrier Arm for Entrance S… — automatic boom barrier by Baroxon® for residential community entrances.

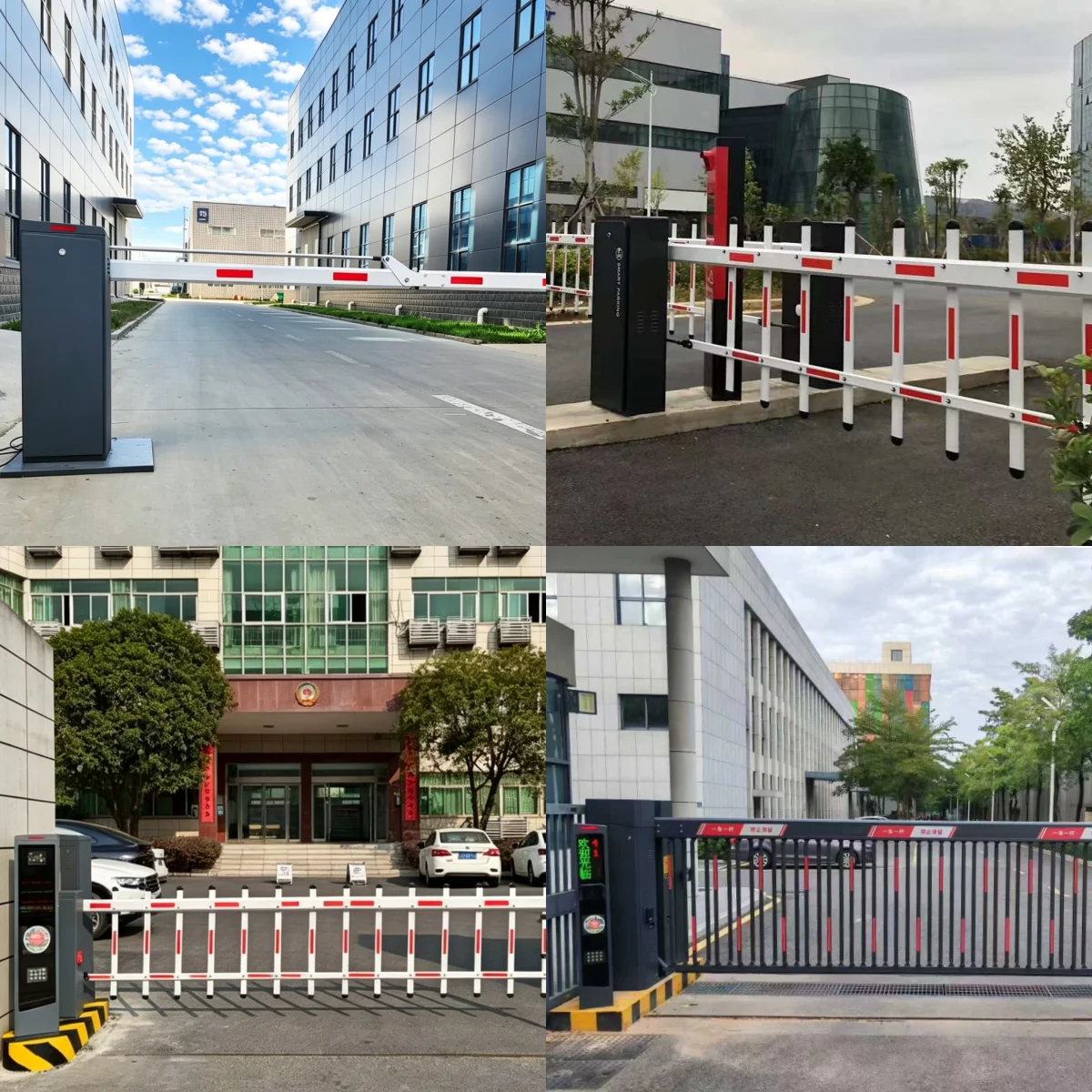

High-Quality Automatic Parking Barrier Arm for Entrance Security Applications is a automatic boom barrier manufactured by Baroxon® in its own factory and aimed at residential community entrances, office car parks and industrial sites. It is the right choice when the project needs to control vehicle entry without a booth operator and without stopping traffic. In standard configuration it offers Boom arm length 3–6 m (up to 8 m on request); Open/close time 0.9–6 s depending on model; Protection rating IP54 (indoor) / IP65 (outdoor). Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.
The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Boom arm length | 3–6 m (up to 8 m on request) |
|---|---|
| Open/close time | 0.9–6 s depending on model |
| Motor | 24 V DC brushless |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery |
| Protection rating | IP54 (indoor) / IP65 (outdoor) |
| MCBF | ≥ 5,000,000 cycles |
Test conditions: Straight 6 m boom barrier, 24 V DC brushless motor, 230 V ±5% supply, ambient temperature 25 °C, 60% relative humidity, continuous run of 1,000 cycles with a 3 s pause between each.
Measured values: Opening time 1.8 s and closing time 2.1 s; final-position repeatability ±1°; MCBF of 5,000,000 cycles; standby consumption 3.5 W; sound level 58 dB(A) measured at 1 m.
Benchmark: Comparable 6 m barriers on the European market typically open in 4.0–6.0 s, with an MCBF of 1,000,000–2,000,000 cycles and standby consumption of 8–12 W. The tested model cuts opening time by 55–70% and extends service life 2.5× versus that average.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Boom arm length | 3–6 m (up to 8 m on request) | 4–6 m |
| Open/close time | 0.9–6 s depending on model | 4.0–6.0 s |
| Motor | 24 V DC brushless | Standard 24 V DC |
| Power supply | AC 220 V ±10% / DC 24 V with backup battery | AC 230 V without backup |
| Protection rating | IP54 (indoor) / IP65 (outdoor) | IP44–IP54 |
| MCBF | ≥ 5,000,000 cycles | 1,000,000–2,000,000 cycles |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.

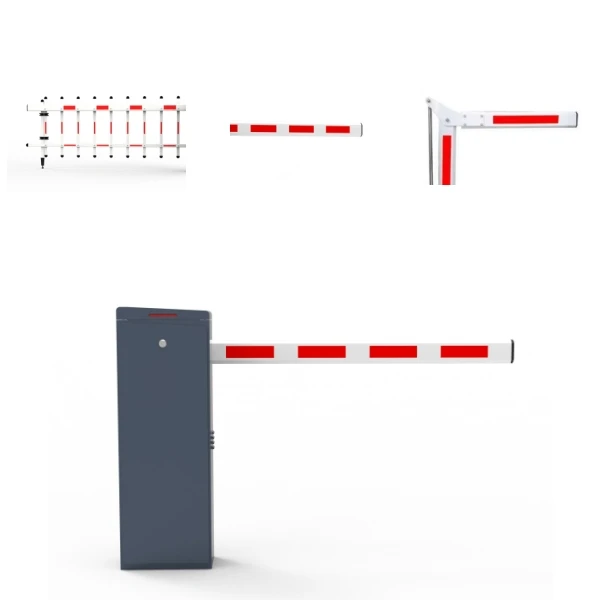

Arm length depends on lane width: 3 m for a single lane, 4-6 m for two lanes, and folding arms for low ceilings or ramps. Baroxon manufactures straight and folding arms up to 6-8 m on request.
For residential communities and normal car parks, 3-6 seconds is enough; for toll plazas and high-traffic sites we recommend 24 V DC brushless motors with 0.9-2 second opening.
AC 110 V or 220 V depending on the country; 24 V DC versions with backup battery are also available for power outages.
Yes. Baroxon barriers support plate recognition cameras, UHF RFID, cards, QR codes, push buttons and remote controls through relay or open protocol.
