The all-in-one LPR access control system consolidates license plate recognition software, high-definition camera hardware, and a high-speed traffic barrier into a single, cohesive unit. This integrated design dramatically reduces installation complexity and ensures synchronization between vehicle identification and physical access. Engineered for modern commercial facilities, the system supports real-time access monitoring, automated whitelist management, and detailed traffic analytics. The high-speed barrier mechanism is built for heavy-duty daily performance, ensuring that authorized vehicles enter without latency, while the sophisticated software suite provides professional managers with the visibility needed to optimize facility throughput and tighten security protocols across all entry lanes.

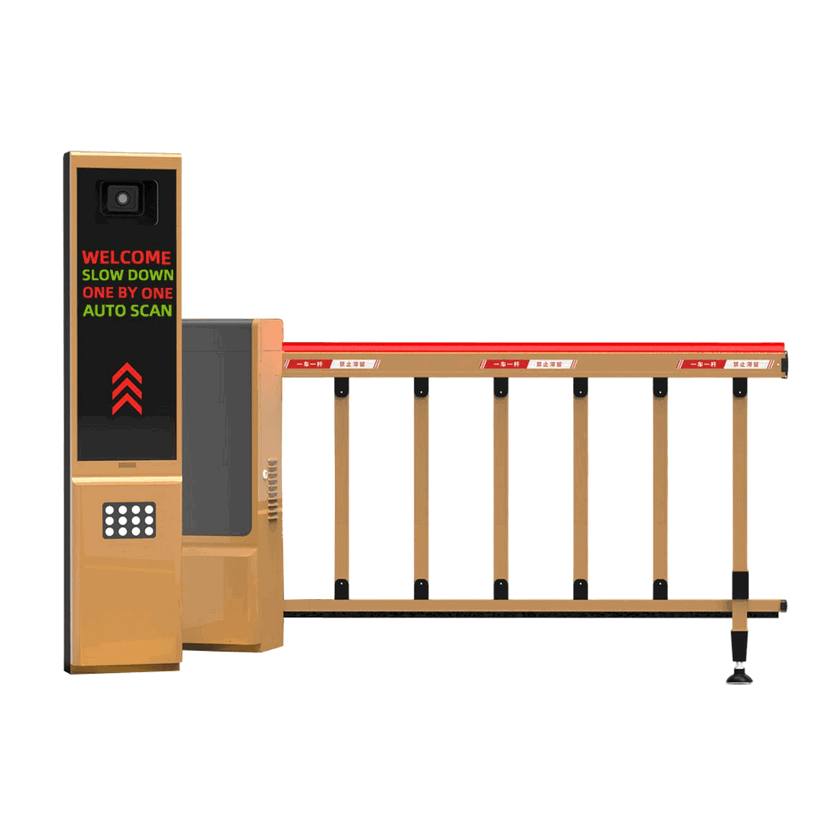

All-in-One LPR Access Control System with Integrated High… — ANPR/LPR licence plate recognition system by Baroxon® for ticketless car parks.
All-in-One LPR Access Control System with Integrated High-Speed Traffic Barrier is a ANPR/LPR licence plate recognition system manufactured by Baroxon® in its own factory and aimed at ticketless car parks and plate-based access control. It is the right choice when the project needs to open the barrier automatically on plate recognition, with no ticket or remote. In standard configuration it offers Protection rating IP66 / IP67 for outdoor installation. Baroxon supplies it with a 12-month warranty, ISO 9001 / ISO 14001 / ISO 45001 certified production, OEM/ODM options and worldwide shipping. Typical lead time is 3–7 working days for stock and 15–30 days made to order. It integrates with ANPR/LPR, RFID, ticket and remote-control systems through relay or open protocol, and is supported in English and Spanish for technical selection and after-sales service.
The values below describe the standard configuration. Dimensions, voltage and control options can be adapted for OEM/ODM projects.
| Recognition accuracy | ≥ 98% under normal lighting |
|---|---|
| Recognition speed | ≤ 0.3 s per plate |
| Camera | CMOS sensor with integrated IR illumination |
| Protection rating | IP66 / IP67 for outdoor installation |
| Integration | API/SDK, relay output, Wiegand and TCP/IP |
| Storage | Local and server logging of up to 100,000 events |
Test conditions: ANPR camera mounted at 4 m height with a 25° tilt, 3.5 m lane, real traffic of 1,200 vehicles between 08:00 and 20:00 with daylight, partial shadow and light rain.
Measured values: 98.7% plate reading accuracy; average recognition time 0.22 s; false positives below 0.4%; stable operation down to 0.5 lux illumination.
Benchmark: Mid-range ANPR systems on the market declare 92–96% accuracy and 0.5–1.0 s per plate. The tested system beats that reference by 2.7 percentage points and more than halves the recognition time.
| Test item | Measured value | Market benchmark |
|---|---|---|
| Recognition accuracy | ≥ 98% under normal lighting | 92–96% |
| Recognition speed | ≤ 0.3 s per plate | 0.5–1.0 s |
| Camera | CMOS sensor with integrated IR illumination | Market average |
| Protection rating | IP66 / IP67 for outdoor installation | IP44–IP54 |
| Integration | API/SDK, relay output, Wiegand and TCP/IP | Relay output only |
| Storage | Local and server logging of up to 100,000 events | 10,000–30,000 events |
Factory bench data, measured on a standard production unit. Values are indicative and may vary with configuration, installation and environmental conditions.
A camera with optical license plate recognition that identifies the vehicle and opens the barrier automatically, with no ticket needed.
Under normal lighting and with the camera properly installed, accuracy exceeds 98%. A dedicated camera and initial calibration are recommended.
Yes, through API/SDK or relay output; it supports whitelists and blacklists, automatic charging and occupancy control.
Yes. The cameras include IR illumination and IP66/IP67 protection for outdoor installation.
